iC-Haus New Product : iC-TW39 24 Bit High-Resolution

 iC-Haus introduces its very new on-axis 24 Bit High-Resolution Magnetic angle sensor, the iC-TW39.

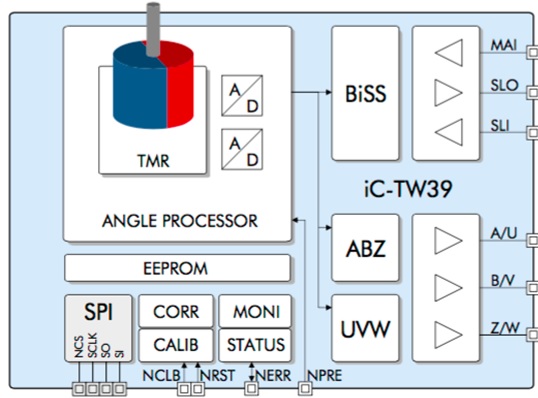

Pushing magnetic end-of-shaft devices to their next performance level. Its design is suitable for incremental quadrature encoders of any pulse count, as well as for serial BiSS/SSI encoders providing absolute angle data, optionally with revolution count. Due to a fully automatic error correction, the full device’s performance is available over the product lifetime.

•  High angle resolution of up to 24 bits

• User-programmable ABZ output with 1 up to 65,536 pulses

• Rotation speed up to 360,000 rpm

Pushing magnetic end-of-shaft devices to their next performance level. Its design is suitable for incremental quadrature encoders of any pulse count, as well as for serial BiSS/SSI encoders providing absolute angle data, optionally with revolution count. Due to a fully automatic error correction, the full device’s performance is available over the product lifetime.

•  High angle resolution of up to 24 bits

• User-programmable ABZ output with 1 up to 65,536 pulses

• Rotation speed up to 360,000 rpm
